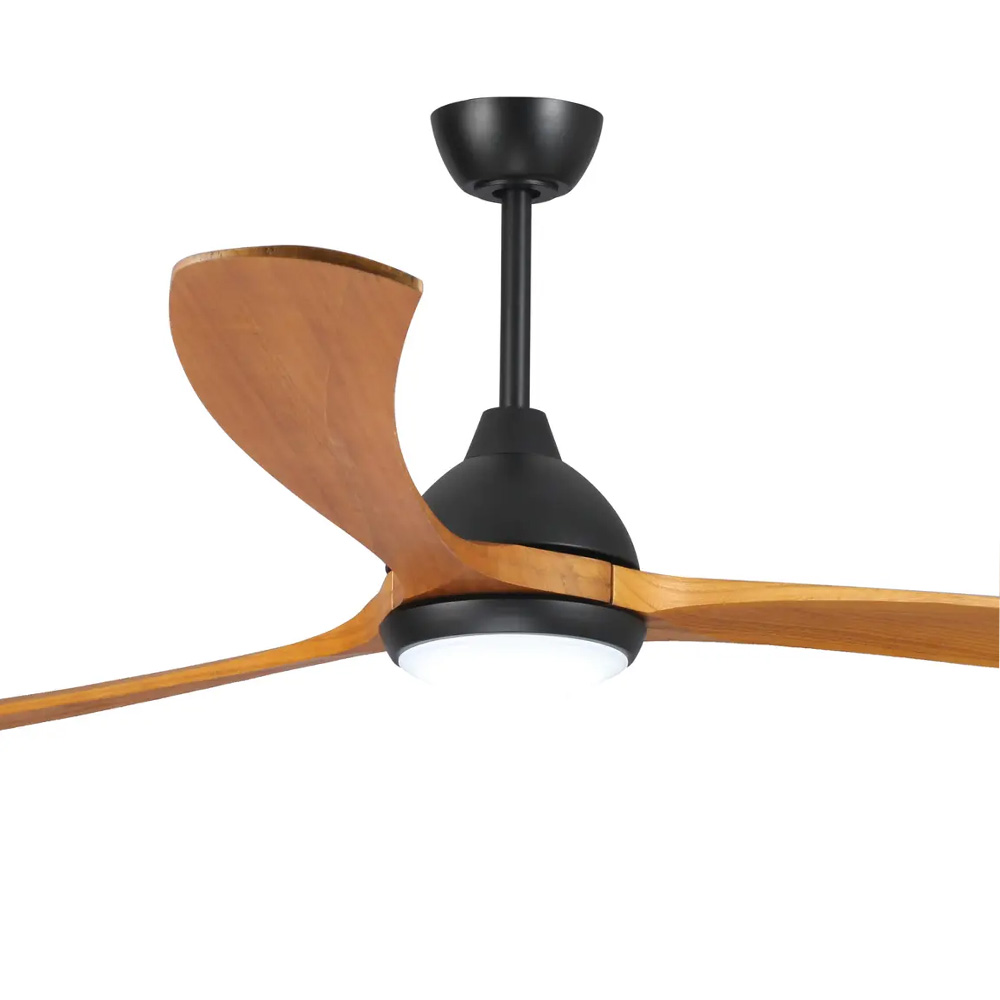

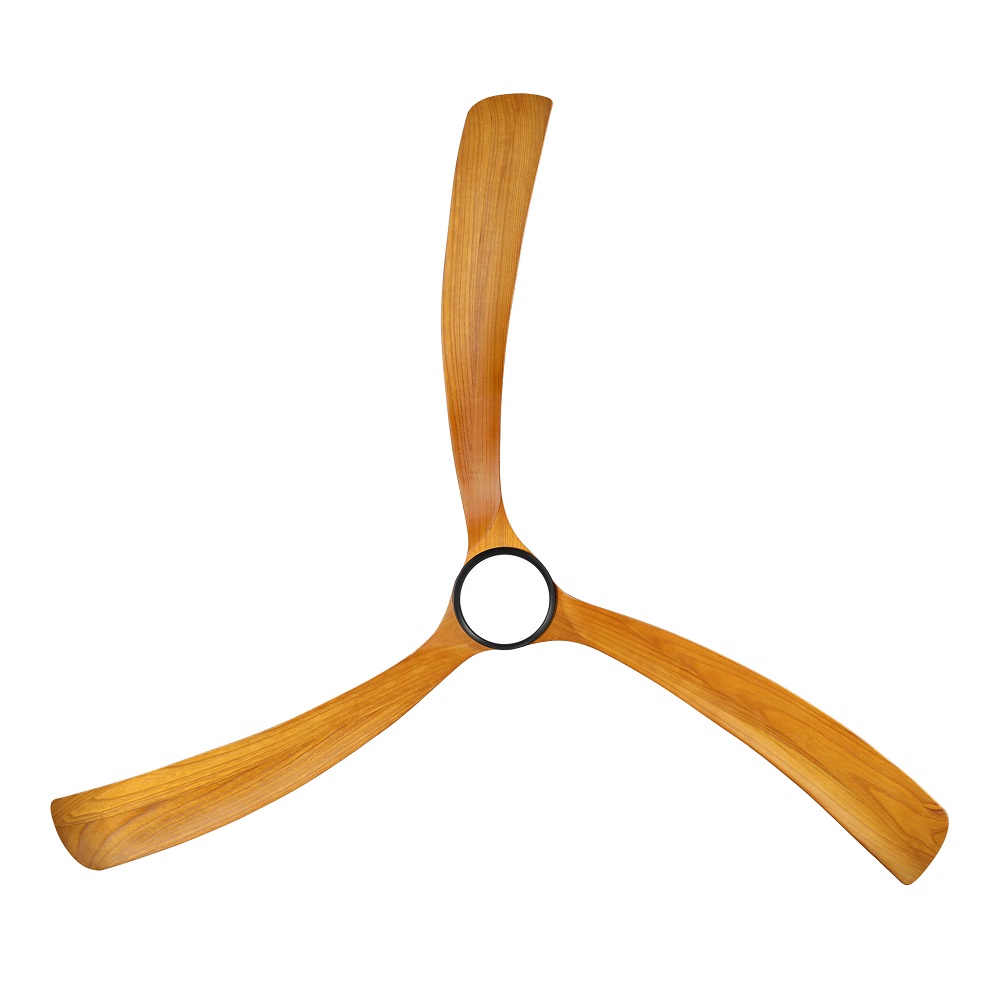

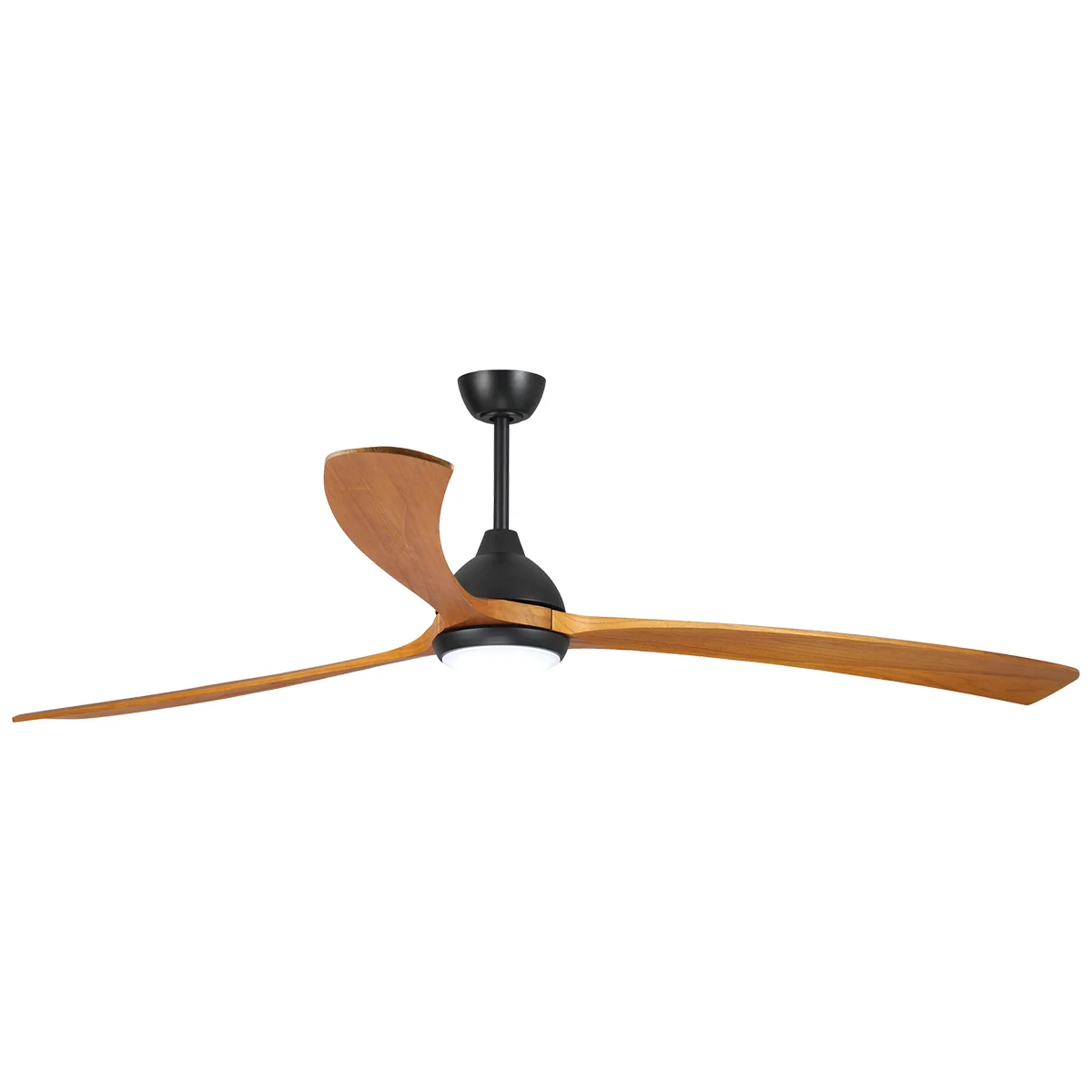

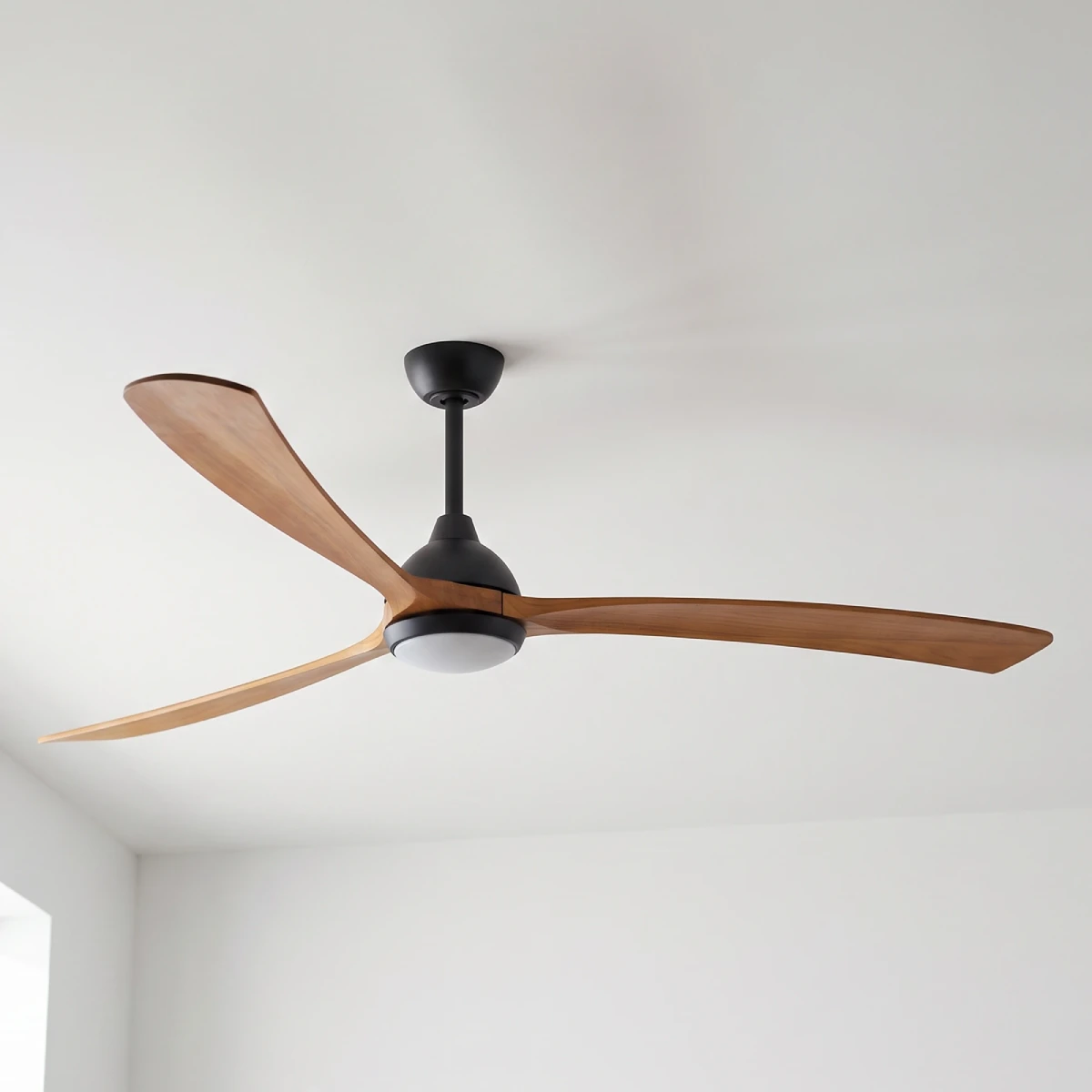

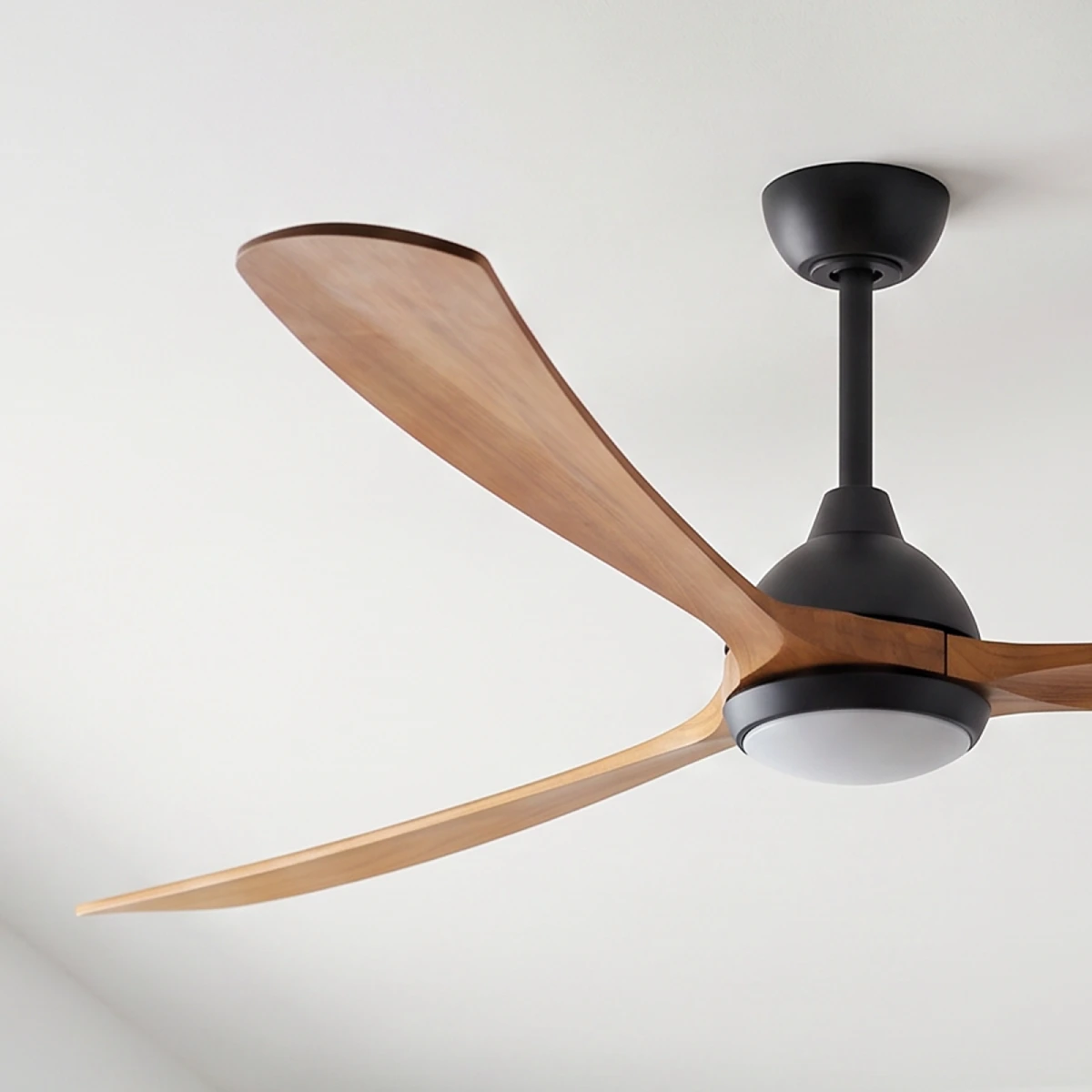

Sanctuary DC Ceiling Fan by Fanco with LED Light & Remote – Black with Teak Timber Blades 86″
RRP: $879.00
SKU: W-CFFCSA28LBL-TK
Optional Extras
Most orders are The Sanctuary DC Ceiling Fan by Fanco with LED Light & Remote in black with teak timber blades spans an impressive 86″, making it ideal for cooling and lighting large open areas without excessive running costs. Its efficient DC motor delivers powerful, consistent airflow while keeping energy use low for everyday practicality. The integrated dimmable CRI 90 LED light provides high-quality, natural illumination with excellent colour accuracy, ensuring colours appear vibrant, balanced and true to life.

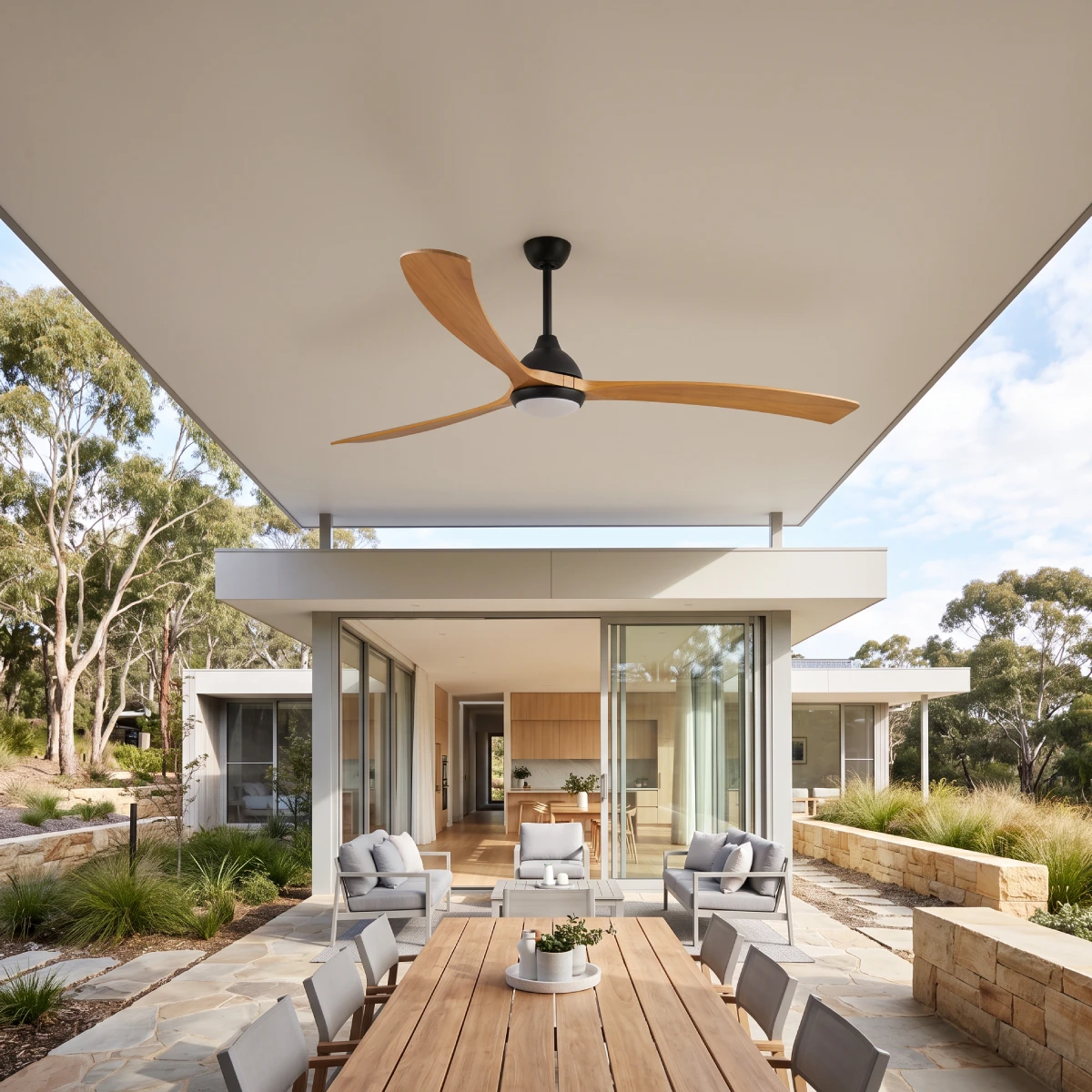

Suitable for indoor, outdoor undercover, and coastal environments, it’s built for reliable performance. The Sanctuary is also SMART-adaptable; it is compatible with the Fanco SMART Wi-Fi Module (sold separately as an accessory), which allows you to control your fan via a smart device. Designed to deliver wide coverage with added lighting convenience, it’s a value-focused solution for spacious, modern homes.
Sanctuary by Fanco Main Features
The Fanco Sanctuary blends durability with elegance, featuring sealed timber blades and anti-corrosive metal for long-lasting outdoor performance.
| Installation Location | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Blade Material | Solid Timber |
| Overall Diameter | 218cm (86″) |
| Blade Pitch | 12 Degrees |
| Motor Type | DC motor |
| Control Type | Remote Control |
| Summer and Winter use? | Reversible from remote |
| Ceiling to Blade Measurement | 432mm (500mm to base of light) |
| Angled Ceiling Suitability | Suitable for angled ceilings up to 15 degrees |
| Light | Included |
Fanco Sanctuary Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 60 | 6.6 | 5,932 m3/hr |
| 2 | 72 | 10.4 | 7,372 m3/hr |
| 3 | 84 | 15.7 | 8,859 m3/hr |
| 4 | 96 | 22.6 | 10,312 m3/hr |
| 5 | 108 | 31.5 | 11,491 m3/hr |
| 6 | 128 | 52.1 | 13,684 m3/hr |
Offering seamless control, the reversible feature is remote-operated. Despite its strength of 13,684 m3/hr airflow, the DC motor consumes just 52.1W.
All about the Fanco Sanctuary Light
| Light Type | LED |
|---|---|
| Light Wattage | 24W |
| Lumens | 2102lm, 1959lm or 1956lm |
| Light Temperature | 3000K, 4000K or 6000K |
| Dimmable | Yes |
What is CCT? CCT stands for colour changing technology, which means that this light kit has the ability for the user to select their preferred colour temperature.
The integrated light lets you choose from 3 colour temperatures: warm white, neutral white, or cool white.
Please note: Solid timber blades are made from natural materials and may cause slight variations in performance specifications. The Sanctuary is recommended for ceilings with a minimum height of 2.7m due to its larger size and extended 432mm ceiling-to-blade drop. A qualified person must complete installation of the fan and components. For outdoor installations, ensure the Sanctuary is positioned at least 1.5m from the edge of the roof or eaves at all times, with a minimum clearance of 70cm maintained between the blade tips and any walls, roof edges, or ceiling beams.
| Brand | Fanco |
|---|---|
| Manufacturers Part Number | KF6021/218B |
| Warranty | Fanco: 8 Year Warranty: 2 year limited in-home warranty + 6 year motor replacement warranty upon product registration. CONDITIONS APPLY. Visit Fanco website for terms and to register your product. |
| Installation Location | Coastal, Outdoor – Undercover, Indoor |
| Control | Smart Adaptable, Remote Control |
| Motor Type | DC |
| Blade Material | Timber |
| Motor Colour | Black |
| Blade Colour | Teak |
| Barcode Number | 0717639370434 + 0717639370472 |
Downloads
Access the official ceiling fan documentation below, including the specification sheet and installation manual for product details, technical specifications, and installation instructions.
Fanco Sanctuary Spec Sheet
Fanco Sanctuary Installation Manual
